CAD

At Cornelius Electronics, we believe that great products start with great design. Our comprehensive CAD design and prototyping services are integral to our vacuum forming process, ensuring that your ideas are transformed into reality with precision and efficiency[1].

Our CAD Design Capabilities:

3D Modelling:

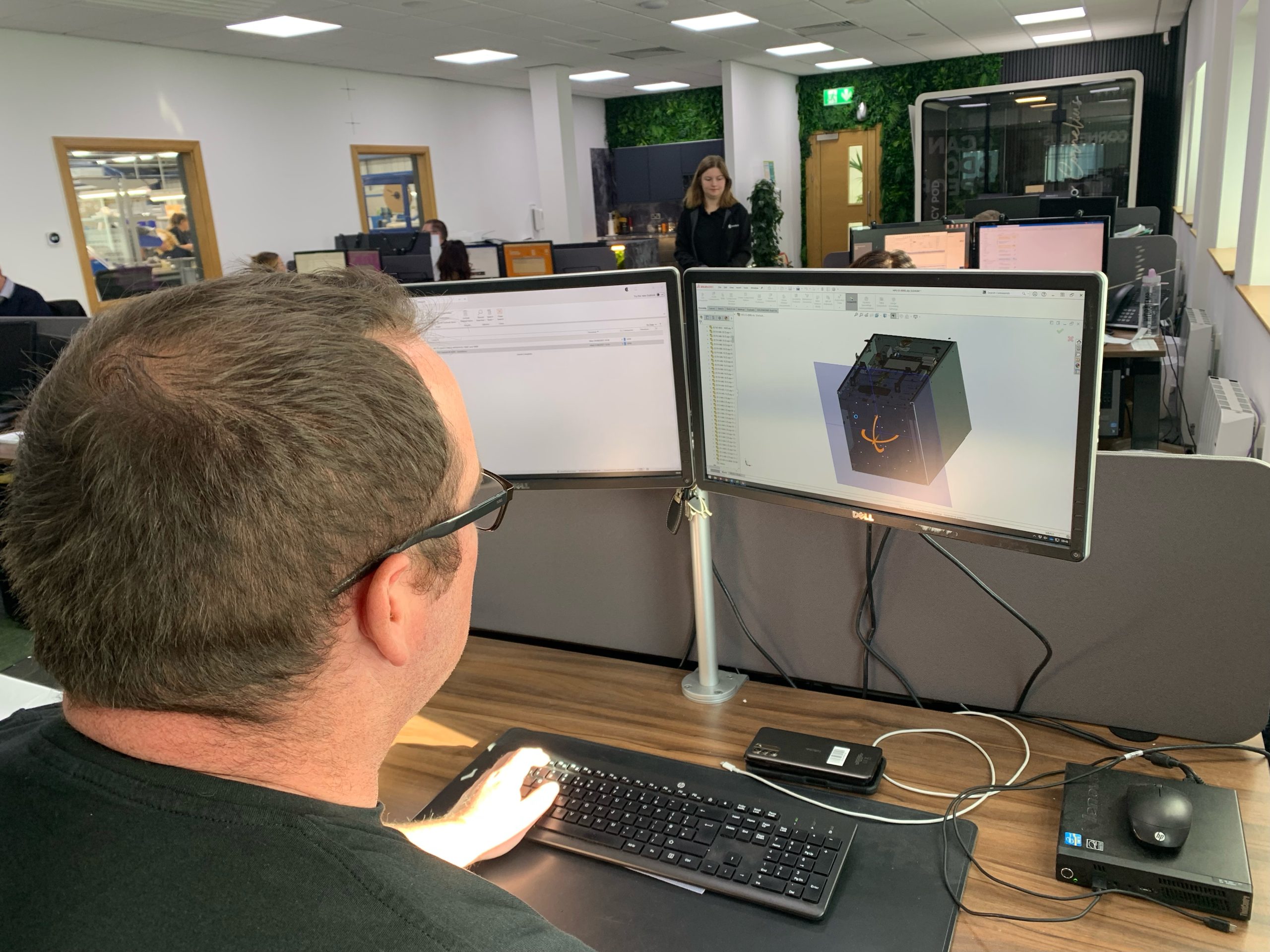

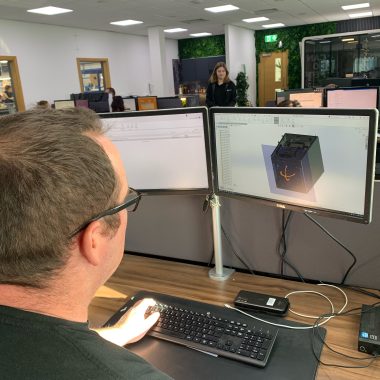

Using industry-leading CAD software, our skilled designers create detailed 3D models of your products. This allows for accurate visualisation and analysis before moving to production.

2D Technical Drawings:
We produce precise 2D technical drawings and schematics, essential for manufacturing and documentation purposes.

Reverse Engineering:
If you have an existing part without digital files, we can reverse engineer it, creating accurate 3D models and 2D drawings.

Design for Manufacture (DFM):
Our team optimises designs for vacuum forming, ensuring that your products are not only aesthetically pleasing but also manufacturable and cost-effective.

At Cornelius Electronics, we’re passionate about bringing your ideas to life. Our CAD design and prototyping services are the first steps in transforming your concepts into high-quality vacuum formed products. Whether you’re developing a new product or improving an existing one, our team has the skills and technology to support your success.

Contact us today to discuss your CAD design and prototyping needs. Let’s collaborate to create innovative, manufacturable designs that set your products apart in the market. With Cornelius Electronics, you’re not just getting a service provider – you’re gaining a partner committed to the success of your project from initial concept through to final production.
